Wieland Shop

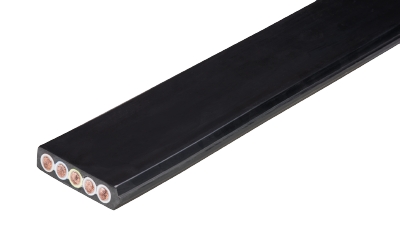

flat cable FL-LSHF 5G16

Articlenr. 00.771.0307.1

Flatcable PODIS CON LSHF 5G16; 0.6/1kV; CPR class B2ca-s1a-d1-a1; Ampacity up to 63 A; halogen-free; flame retardent; for fixed installation; color black; W x H 48 x 11,5 mm

Price

Stock on request

Quantity

meter

Article start page

Technical data

Downloads

Accessories

Fits with

Data sheet

commercial data

article number	00.771.0307.1
article description	flat cable FL-LSHF 5G16
EAN	4049088610011
order unit	1 m
country of origin	ES
customs tariff number	85444995

packaging dimensions

length packed	1250 mm
width packed	802 mm
height packed	1250 mm
gross weight packed	728000 g
net weight single part	1316 g
volume packed	1253125 ccm
packaging	roll
packaging quantity	500 m

Eldas Number

113328529

core insulation	polyolefin
fire load	3.159 kWh/m
fire class	B2ca s1 d1 a1
core identification	color
color outer sheath	black
material outer sheath	polyolefin
conductor category	class 5 = flexible
yellow/green conductor	yes
bending radius, static	57.5 mm
screen	no
number of cores	5
cable width approx.	48 mm
cable height approx.	11.5 mm
UV resistant	yes
min. installation temperature	0 °C
max. installation temperature	60 °C
shock resistance	IK10

nominal cross section conductor	16 mm²
nominal voltage UN	1 kV
Voltage drop	2.67 (V/A km)²

note	For purchase quantities of less than 500 m, a cutting surcharge will be added.

ECLASS 11
ECLASS 8.1	27062002
ETIM 9.0	EC003250
ETIM 8.0	EC003250
ETIM 7.0	EC003250
ETIM 6.0	EC000825
ETIM 5.0	EC000825
ETIM 4.0	EC000825

ROHS conformity status	compliant
REACH-SVHC conformity status	compliant

Filename	Description	Filesize	File type
EC Declaration of Conformity	-	793.02 KB	PDF
UKCA Declaration of Conformity	-	789.71 KB	PDF

Filename	Description	Filesize	File type
assembly instruction	-	105.35 KB	PDF
tender text (DOCX)	-	12.06 KB	DOCX

Filename	Description	Filesize	File type
Declaración REACH SVHC	-	196.86 KB	PDF
RoHS certificate	-	197.18 KB	PDF

Articlenr.	Article-type description	Quantity
Z7.432.8053.0	flatcable entry PODIS 5G16	pieces
Z6.563.6553.0	cable end cap podis 5G16	pieces
Z6.563.7800.0	cable patch PODIS/GESIS	pieces
05.569.7453.0	cable clip FLATCABLE SCREW	pieces
05.569.7553.0	cable clip FLATCABLE NAIL	pieces

Articlenr.	Article-type description	Quantity
75.450.0014.3	feed-in module FCS 16 5 SA SAM50G	pieces
75.450.0114.3	feed-in module FCS 16 5 SA SAM63G	pieces
75.450.0214.3	feed-in module FCS 16 5 SA SAM50K	pieces
75.450.0314.3	feed-in module FCS 16 5 SA SAM63K	pieces
75.452.0053.1	connecting module FCS 16 5 SI SA RST	pieces
75.456.0053.1	connecting module FCS 16 5 SI SA M32	pieces
75.456.0153.1	connecting module FCS 16 5 SI SA M25	pieces
75.453.0053.1	connecting module FCS 16 5 SI SA RST	pieces
75.456.0855.1	Circuitbreaker Module FH RCBO 16 CAM32	pieces
75.456.0955.1	Circuitbreaker Module FH RCBO 32 CAM32	pieces
75.456.1155.1	Circuitbreaker Module FH RCBO 16 CARST20	pieces
75.456.1255.1	Circuitbreaker Module FH RCBO 32 CARST25	pieces
75.450.2114.3	feed-in module FCS 16 5 SA SAM	pieces
G0.000.0157.0	connecting module PLC MODUL ADAPTER	pieces
75.452.1353.1	Circuitbreaker Module FH RCBO 20 CARST20	pieces
75.453.1755.1	Circuitbreaker Module FH BO 32 C RST25	pieces
75.456.1055.1	Circuitbreaker Module FH MT M32	pieces
75.459.8553.1	Surge Protection Module FH SP2 CL	pieces
