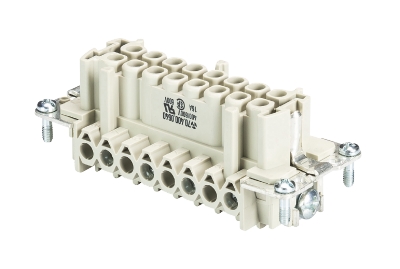

insert femelle BAS BUS 6 2,5 64

Vare nummer 70.400.0640.0

Pris

Lagerbeholdning På forespørgsel

Antal

Styk

Produkt startside

Tekniske data

Downloads

Tilbehør

Passer til

Datablad

données commerciales

numéro d'article	70.400.0640.0
description de l'article	insert femelle BAS BUS 6 2,5 64
EAN	4015573223172
unité de commande	10 pièce(s)
pays d'origine	DE
numéro de tarif douanier	85366990

dimensions de l’emballage

longueur emballée	182 mm
largeur emballée	175 mm
hauteur emballée	38 mm
poids brut emballé	691,5 g
poids net pièce unique	64,66 g
volume emballé	1210 ccm
conditionnement	carton
quantité d'emballages	10 pièce(s)

certificats/approbations

général

version	insert femelle
classe d'inflammabilité des matériaux d'isolation selon la norme UL94	V0
couleur	gris
cycles d'accouplement	200
degré de pollution	3
convient pour une installation en ligne	non
température de fonctionnement min.	-40 °C
température de fonctionnement max.	120 °C

données de connexion

type de connexion	connexion à vis
nombre de pôles	6
plus contacts de commutation	2
nombre de pôles par rapport au courant nominal 2	0
nombre de pôles par rapport au courant nominal 3	0
nombre total de pôles sans contact avec la terre	8
avec protection du fil	oui
section minimale du conducteur solide (solide/multibrin)	0.5 mm²
section maximale du conducteur rigide (solide/multibrin)	2.5 mm²
contact de protection	oui

données techiques UL/CSA

tension nominale selon UL/CSA	600 V
courant nominal selon UL	16 A
courant nominal selon CSA	16 A
section du conducteur souple min.	0.5 mm²
section du conducteur souple max.	2.5 mm²
section du conducteur souple AWG	22-14 AWG

version

avec logement	non

contacts

matériel de contact	alliage de cuivre
surface	etamé
résistance de contact	≤ 1,5 mOhm
longueur de dénudage	7 mm

conception tête vis / Serrage au couple recommandé

vis de fixation	H1/0.5-0.7 Nm
vis de serrage	H1/0.5-0.7 Nm
vis des conducteurs de terre	H2/1.2-1.6 Nm

données techniques DIN EN 61984

tension nominale	690 V
tension nominale vers PE	400 V
courant nominal	16 A
tension nominale d'impultion	6 kV

classification

ECLASS 11
ECLASS 8.1	27440205
ETIM 9.0	EC000438
ETIM 8.0	EC000438
ETIM 7.0	EC000438
ETIM 6.0	EC000438
ETIM 5.0	EC000438
ETIM 4.0	EC000438

conformité du produit

statut de conformité RoHS	conforme avec des exceptions
exemptions ROHS	III-6(c)
statut de conformité REACH-SVHC	doit être déclaré
substances REACH-SVHC	Lead
REACH-SVHC Numéros CAS	7439-92-1
