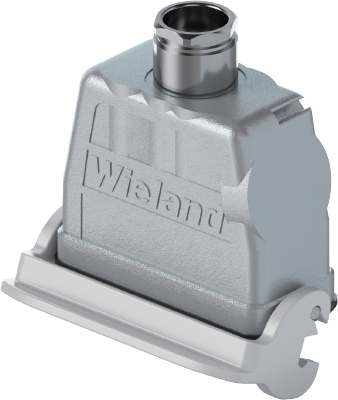

Gehäuseoberteil BAS GOT GL 40HM32 50 A0

Articlenr. 76.374.4035.0

Steckverbinder für freie Kabelverbindungen revos basic aus Aluminium, mit Einhandverriegelung und Kabelverschraubung M32 oben – freie Kabelverbindung (IP54), 40-polig

Price

Stock on request

Quantity

pieces

Article start page

Technical data

Downloads

Accessories

Fits with

Data sheet

Kaufmännische Daten

Artikelnummer	76.374.4035.0
Artikelbezeichnung	Gehäuseoberteil BAS GOT GL 40HM32 50 A0
EAN	4015573687073
Bestelleinheit	1 St
Ursprungsland	DE
Zolltarifnummer	85389099

Verpackungsmaße

Länge verpackt	250 mm
Breite verpackt	260 mm
Höhe verpackt	43 mm
Bruttogewicht verpackt	290 g
Nettogewicht Einzelteil	279 g
Volumen verpackt	1000 ccm
Verpackungsart	Beutel
Verpackungsmenge	1 St

Werkstoff des Gehäuses	Aluminium
Farbe	grau
Oberfläche	pulverbeschichtet
Schutzart (IP)	IP54
UV-beständig	ja
Brennbarkeitsklasse des Isolierstoffs nach UL 94	sonstige
Einsatztemperaturbereich min.	-40 °C
Einsatztemperaturbereich max.	120 °C

Baugröße	16H
Ausführung des Gehäuses	Kupplungsverlängerung
Art der Verriegelung	Längsbügel
Kabeleinführung	oben
Art der Kabeleinführung	Verschraubung
Mit Kabelverschraubung	ja
Gewindegröße M	32
Gewindegröße PG
Klappdeckel	nein
EMV-Ausführung	nein
Länge	94 mm
Breite	43 mm
Höhe	76 mm

ECLASS 11	27440202
ECLASS 8.1	27440202
ETIM 9.0	EC000437
ETIM 8.0	EC000437
ETIM 7.0	EC000437
ETIM 6.0	EC000437
ETIM 5.0	EC000437
ETIM 4.0	EC000437
ETIM 3.0	EC000437

RoHS Konformitätsstatus	Konform mit Ausnahmen
ROHS Ausnahmen	III-6(c)
REACH-SVHC Konformitätsstatus	Deklarationspflichtig
REACH-SVHC Substanzen	Lead
REACH-SVHC CAS-Nummern	7439-92-1

Filename	Description	Filesize	File type
EC Declaration of Conformity	-	45.12 KB	PDF
UKCA Declaration of Conformity	-	39.31 KB	PDF

Filename	Description	Filesize	File type
customer drawing	-	103.29 KB	PDF
customer drawing	-	101.05 KB	TIF
customer drawing DXF	-	4.85 MB	DXF
dimensional drawing	-	27.03 KB	PDF

Filename	Description	Filesize	File type
3D product image	-	401.50 KB	PDF
CAD STEP data	-	769.86 KB	STP
IGES data	-	2.31 MB	IGS
JT data	-	510.73 KB	JT

Filename	Description	Filesize	File type
catalogue	-	41.84 MB	PDF

Filename	Description	Filesize	File type
REACH SVHC declaration	-	197.73 KB	PDF
RoHS certificate	-	197.76 KB	PDF

Articlenr.	Article-type description	Quantity
70.300.1602.0	female insert BAS BUS 16 2,5 50 AG	pieces
70.300.1640.0	female insert BAS BUS 16 2,5 50	pieces
70.301.1640.0	female insert BAS BUS 16 2,5 50 AU	pieces
70.302.1640.0	female insert BAS BUS OD 16 2,5 50	pieces
70.310.1602.0	male insert BAS STS 16 2,5 50 AG	pieces
70.310.1640.0	male insert BAS STS 16 2,5 50	pieces
70.311.1640.0	male insert BAS STS 16 2,5 50 AU	pieces
70.312.1640.0	male insert BAS STS OD 16 2,5 50	pieces
70.500.1653.0	female insert BAS BUF 16 2,5 50	pieces
70.510.1653.0	male insert BAS STF 16 2,5 50	pieces
70.502.1653.0	female insert BAS BUM 16 2,5 50 AG	pieces
70.512.1653.0	male insert BAS STM 16 2,5 50 AG	pieces
70.700.1658.0	female insert BAS BUC 16 50	pieces
70.710.1658.0	male insert BAS STC 16 50	pieces
70.800.3256.0	female insert BAS BUCK 32 50 PC	pieces
70.810.3256.0	male insert BAS STCK 32 50 PC	pieces
70.400.0640.0	female insert BAS BUS 6 2,5 64	pieces
70.410.0640.0	male insert BAS STS 6 2,5 64	pieces
72.300.1653.0	female insert BAS BUS 16 2,5 69	pieces
72.310.1653.0	male insert BAS STS 16 2,5 69	pieces
72.700.1658.0	female insert BAS BUC 16 69	pieces
72.710.1658.0	male insert BAS STC 16 69	pieces
73.800.7253.0	female insert DD BUC 72 1,5 25	pieces
73.810.7253.0	male insert DD STC 72 1,5 25	pieces
73.700.4058.0	female insert HD BUC 40 25	pieces
73.710.4058.0	male insert HD STC 40 25	pieces
70.200.0653.0	female insert POW BUS 6 6,0 40 AG	pieces
70.210.0653.0	male insert POW STS 6 6,0 40 AG	pieces
72.208.0453.0	female insert POW BUS 4 16 64 AG	pieces
72.218.0453.0	male insert POW STS 4 16 64 AG	pieces
72.205.1053.0	female insert POW BUS 4/6 DA D AG	pieces
72.215.1053.0	male insert POW STS 4/6 DA D AG	pieces
72.205.0653.0	female insert POW BUS 4/2 FA DB AG	pieces
72.215.0653.0	male insert POW STS 4/2 FA DB AG	pieces
70.405.1653.0	female insert BAS BUP 16 2,5 50 AG	pieces
70.415.1653.0	male insert BAS STP 16 2,5 50 AG	pieces
72.703.1453.0	female insert POW BUC 12/2 DE	pieces
72.713.1453.0	male insert POW STC 12/2 DE	pieces
72.703.4253.0	female insert POW BUC 6/36 DF	pieces
72.713.4253.0	male insert POW STC 6/36 DF	pieces
