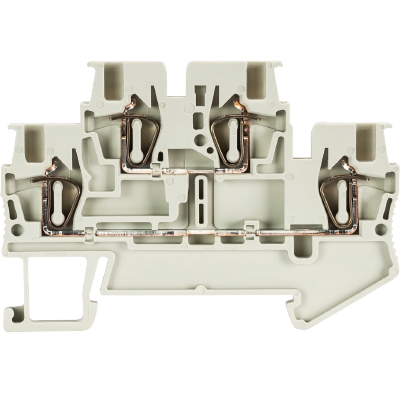

multi-tier terminal WKF 1,5 E2/35

Articlenr. 56.702.7653.0

Duo Feed-through terminal with tension spring connection for mounting on TS 35, nominal cross section: 1.5 mm², width: 4.15 mm, color: grey

Price

Stock on request

Quantity

pieces

Article start page

Technical data

Downloads

Accessories

Fits with

Data sheet

commercial data

article number	56.702.7653.0
article description	multi-tier terminal WKF 1,5 E2/35
EAN	4015573731868
order unit	50 piece(s)
country of origin	DE
customs tariff number	85369010

packaging dimensions

length packed	245 mm
width packed	80 mm
height packed	50 mm
gross weight packed	433 g
net weight single part	7.86 g
volume packed	980 ccm

certificates / approvals

general

nominal cross section	1.5 mm²
color	grey
number of levels	2
number of clamp positions per level	2
width/grid dimension	4.15 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
explosion-tested version "Ex e"	yes
mounting method	DIN rail (top hat rail) 35/7.5 mm
terminal blocks for electrical installations	yes

technical data

rated current	17.5 A
rated voltage	500 V
rated impulse voltage	6 kV
pollution degree	3
closing plate required	yes
type of insulation material	thermoplastic
length	67.6 mm

connection data

connection type 1	spring clamp connection
connection type 2	spring clamp connection
minimum cross section solid	0.08 mm²
maximum cross section solid	1.5 mm²
minimum cross section fine stranded	0.08 mm²
maximum cross section fine stranded	1.5 mm²
wire strip length	10 mm

technical data UL/CSA

cross section UL	26-14 AWG
voltage UL	300 V
current factory wiring	15 A
current field wiring	15 A
cross section CSA	26-14 AWG
voltage CSA	300 V
current CSA	15 A

technical data ATEX

cross section fine-stranded	0,14 - 1,5
connectable conductor cross section solid	0,14 - 1,5

classification

ECLASS 11
ECLASS 8.1	27141120
ETIM 9.0	EC000897
ETIM 8.0	EC000897
ETIM 7.0	EC000897
ETIM 6.0	EC000897
ETIM 5.0	EC000897
ETIM 4.0	EC000897
ETIM 3.0	EC000897

product compliance

ROHS conformity status	compliant
REACH-SVHC conformity status	compliant

Filename	Description	Filesize	File type
EC Declaration of Conformity	-	177.63 KB	PDF
Ex information	-	15.33 MB	ZIP
UKCA Declaration of Conformity	-	39.32 KB	PDF
approval CSA	-	124.91 KB	PDF
approval cURus	-	4.42 MB	PDF
attestation of conformity (ATEX)	-	833.78 KB	PDF
dopuszczenie DEKRA-ATEX	-	420.07 KB	PDF

Filename	Description	Filesize	File type
customer drawing	-	42.86 KB	TIF
customer drawing	-	44.81 KB	PDF
customer drawing DXF	-	251.23 KB	DXF

Filename	Description	Filesize	File type
3D product image	-	145.75 KB	PDF
CAD STEP data	-	248.04 KB	STP
IGES data	-	491.28 KB	IGS
JT data	-	2.59 KB	JT

Filename	Description	Filesize	File type
EPLAN P8 data	-	1.80 MB	ZIP

Filename	Description	Filesize	File type
tender text	-	1.23 KB	HTM

Filename	Description	Filesize	File type
catalogue	-	28.67 MB	PDF

Filename	Description	Filesize	File type
REACH SVHC declaration	-	196.86 KB	PDF
RoHS certificate	-	197.18 KB	PDF

Articlenr.	Article-type description	Quantity
Z7.268.0227.0	jumper bar IVB WKF 1,5- 2	pieces
Z7.268.0327.0	jumper bar IVB WKF 1,5- 3	pieces
Z7.268.0427.0	jumper bar IVB WKF 1,5- 4	pieces
Z7.268.0527.0	jumper bar IVB WKF 1,5- 5	pieces
Z7.268.1027.0	jumper bar IVB WKF 1,5- 10	pieces
Z7.268.2027.0	jumper bar IVB WKF 1,5- 20	pieces
98.300.0000.0	mounting rail TS 35x7,5 UNPERF - l:2000mm	pieces
98.300.1000.0	mounting rail TS 35x7,5 PERF 15mm - l:2000mm	pieces
98.300.1900.0	mounting rail TS 35x7,5 PERF 25mm - l:2000mm	pieces
98.360.0000.0	mounting rail TS 35x15-2,3 UNPERF - l:2000mm	pieces
98.360.0004.0	mounting rail TS 35x15-2,3 UNPERF FZN - l:2000mm	pieces
98.370.0000.0	mounting rail TS 35x15 UNPERF - l:2000mm	pieces
98.370.1000.0	mounting rail TS 35x15 PERF 15mm - l:2000mm	pieces
98.380.0000.0	mounting rail TS 35x15-2,3 UNPERF CU - l:2000mm	pieces
07.312.8753.0	end plate APF 1,5 E2	pieces
07.312.8853.0	partition TWF 1,5 E2	pieces
Z4.243.2053.0	marking tag plate BZ/WKF 1,5/10	pieces
98.300.1800.0	mounting rail TS 35x7,5 PERF 18mm - l:2000mm	pieces
