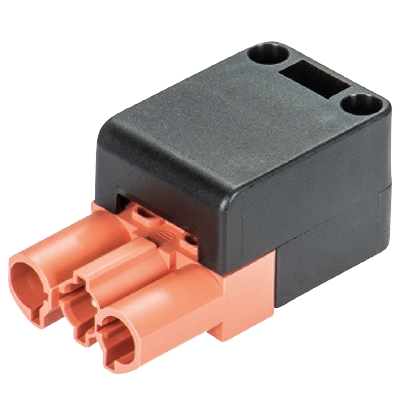

Stik GST18I3S S1NZR2A MRT03

Articlenr. 99.438.5802.2

Price

Stock on request

Quantity

pieces

Article start page

Technical data

Downloads

Accessories

Fits with

Data sheet

Array

	99.438.5802.2
	Stik GST18I3S S1NZR2A MRT03
EAN	4015573646469
Ordre enhed	100 St
	DE
	85366990

Emballagens dimensioner

	204 mm
	178 mm
	175 mm
	2230 g
	20,613 g
	6355 ccm
	pap
	100 St

Generelt

Nominel strøm	20 A
Nominel spænding	250 V
Nominel impuls spænding	4 kV
Trækaflastning	ja
Forureningsgrad	2
Mekanisk kodning	Code 3
låsbar
Farve på kodning/kontaktindsats	Lakserød
Pol-mærkning	L, N, PE
Hus farve inklusiv trækaflastning	Sort
RAL-Nummer Codierung/Kontakteinsatz	3022

Tilslutningsdata

Kabeldiameter max.	11,3 mm
Kabeldiameter min.	8,3 mm
Kvadrat massiv	2,5 mm²
Tværsnit massiv 2 (min.)	0,5 mm²
Tværsnit fintrådet max.	2,5 mm²
Tværsnit flerkoret 2 (min.)	0,5 mm²
Tilslutninger per pol	1
Afisoleringslængde	35 mm
Afisoleringslængde	7 mm

Model

Model	Han
Tilslutning	skruetilslutning
Tæthedsklasse (IP)	IP40

Materiale

Materiale kasse	Polyamid
Halogenfri	ja
Kontakt material	CuZn
brand belastning	0,113 kWh/St
Kontinuerlig temperatur, isolationsdele	100 °C
Overfladebehandling	tin

Dimensioner

Længde	54,7 mm
Bredde	28,2 mm
Højde	25,2 mm

Klassifikation

ECLASS 11
ECLASS 8.1	27440605
ETIM 9.0	EC002560
ETIM 8.0	EC002560
ETIM 7.0	EC002560
ETIM 6.0	EC002560
ETIM 5.0	EC002560
ETIM 4.0	EC002560

Product compliance

ROHS conformity status
ROHS Exceptions	III-6(c)
REACH-SVHC conformity status
REACH substance	Lead
REACH CAS-Numbers	7439-92-1

Filename	Description	Filesize	File type
dimensional drawing	-	15.48 KB	PDF

Filename	Description	Filesize	File type
3D product image	-	191.50 KB	PDF
CAD STEP data	-	328.60 KB	STP
IGES data	-	930.43 KB	IGS
JT data	-	64.64 KB	JT

Filename	Description	Filesize	File type
REACH info	-	68.37 KB	PDF
tender text (TXT)	-	692.00 B	TXT

Filename	Description	Filesize	File type
Declaración REACH SVHC	-	197.74 KB	PDF
RoHS certificate	-	197.76 KB	PDF

Articlenr.	Article-type description	Quantity
05.587.3156.0	(G)ST18 WS	pieces
06.561.7853.0	monteringsramme GST18I3 SW	pieces
05.561.3653.0	Blindprop GST18I3VS B WS	pieces
05.561.3653.1	Blindprop GST18I3VS B SW	pieces
05.564.5353.0	Blindprop GST18I3/4/5 SW	pieces
05.564.5353.2	Blindprop GST18I3/4/5 WS	pieces
05.594.4250.0	Blindprop ST18/3B + GST18I3 ST WS	pieces
05.594.4253.0	Blindprop ST18/3B + GST18I3 ST WS	pieces
05.587.3156.1	(G)ST18 SW	pieces
