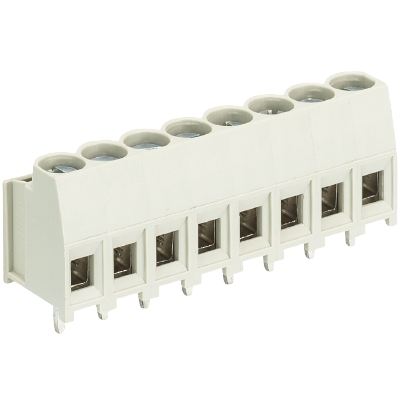

Printklemme 8191 R / 4 Z OB

Articlenr. 25.155.0453.0

4-pol Printklemme uden opmærkning skrue 5mm/2,5mm² 8191R/4 Z OB grå

Price

Stock on request

Quantity

pieces

Article start page

Technical data

Downloads

Accessories

Fits with

Data sheet

Array

	25.155.0453.0
	Printklemme 8191 R / 4 Z OB
EAN	4015573484108
Ordre enhed	250 St
	DE
	85369010

Emballagens dimensioner

	177 mm
	130 mm
	79 mm
	1450 g
	5,227 g
	1818 ccm
	pap
	250 St

Godkendelser

Generelt

ben afstand	5 mm
Tilslutning	skruetilslutning
Loddeproces	bølgelodning
	kasse
Antal poler	4
Ledning til printkort	180°
Antal etager	1
Integreret test sokkel	nej
Isolationsplade	ja
Fikseringstappe	nej
Opmærkning	nej

Specifikationer

Nominelle kvadrat	2.5 mm²
Nominel strøm	16 A
Overspændingskategori I	1000 V
Overspændingskategori II	690 V
Overspændingskategori III	250 V
Nominel impuls spænding	4 kV
Afisoleringslængde	6,5 mm

Tilslutningsdata

Min. kvadrat solid	0,14 mm²
Maks. kvadrat massiv	4 mm²
Min. kvadrat fintkoret	0,14 mm²
Maks. kvadrat fin koret	2,5 mm²
Afisoleringslængde	6,5 mm

Specifikationer UL/CSA

Kvadrat UL	22-12 AWG
Spænding UL	300 V
Aktuel field ledninger	20 A
Factory wiring strøm	30 A
Kvadrat CSA	22-12 AWG
Spænding CSA	300 V
Strøm CSA	25 A

andre

Type isolationsmateriale	Termoplast
Farve	grå
Højde	15 mm
Længde	20,85 mm
Dybde	11,5 mm
Materiale skrue	stål
Materiale kontaktbasis	E-Cu
Materiale kontaktoverflade	Sn
Tilspændingsmoment	0,5 Nm

Klassifikation

ECLASS 11
ECLASS 8.1	27440401
ETIM 9.0	EC002643
ETIM 8.0	EC002643
ETIM 7.0	EC002643
ETIM 6.0	EC002643
ETIM 5.0	EC002643
ETIM 4.0	EC002643

Product compliance

ROHS conformity status
ROHS Exceptions	III-6(c)
REACH-SVHC conformity status
REACH substance	Lead
REACH CAS-Numbers	7439-92-1
