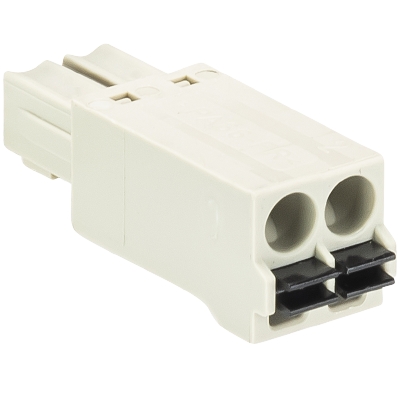

Printstik 8513 BS / 6 OB

Articlenr. 27.630.3653.0

Stik uden opmærkning fjeder 125V/8A 8513BS/6OB grå

Price

Stock on request

Quantity

pieces

Article start page

Technical data

Downloads

Accessories

Fits with

Data sheet

Array

	27.630.3653.0
	Printstik 8513 BS / 6 OB
EAN	4049644018343
Ordre enhed	50 St
	TW
	85366990

Emballagens dimensioner

	150 mm
	110 mm
	40 mm
	189,4 g
	3,2 g
	660 ccm
	pap
	50 St

Godkendelser

Generelt

ben afstand	3,5 mm
Loddeproces	Ingen
	kasse
Antal poler	6
Opmærkning	nej
Stik retning i forhold til lederen	180°

Specifikationer

Nominelle kvadrat	1.5 mm²
Nominel strøm	4 A
Overspændingskategori I	690 V
Overspændingskategori II	250 V
Overspændingskategori III	160 V
Nominel impuls spænding	2.5 kV
Afisoleringslængde	11 mm

Tilslutningsdata

Min. kvadrat solid	0,2 mm²
Maks. kvadrat massiv	1,5 mm²
Min. kvadrat fintkoret	0,2 mm²
Maks. kvadrat fin koret	1 mm²
Afisoleringslængde	11 mm

Specifikationer UL/CSA

Kvadrat UL	24-16 AWG
Spænding UL	150 V
Aktuel field ledninger	8 A
Factory wiring strøm	8 A
Kvadrat CSA	24-16 AWG
Spænding CSA	150 V
Strøm CSA	8 A

andre

Type isolationsmateriale	Termoplast
Farve	grå
Højde	7,8 mm
Længde	21,7 mm
Dybde	22,9 mm
Materiale skrue	Ingen
Materiale kontaktbasis	andre
Materiale kontaktoverflade	Sn

Klassifikation

ECLASS 11
ECLASS 8.1	27440402
ETIM 9.0
ETIM 8.0
ETIM 7.0
ETIM 6.0	EC002638
ETIM 5.0	EC002638

Product compliance

ROHS conformity status
REACH-SVHC conformity status

Filename	Description	Filesize	File type
approval cURus	-	287.94 KB	PDF

Filename	Description	Filesize	File type
customer drawing	-	81.66 KB	PDF
customer drawing	-	79.46 KB	TIF
customer drawing DXF	-	1.45 MB	DXF
dimensional drawing	-	22.57 KB	PDF

Filename	Description	Filesize	File type
3D product image	-	571.08 KB	PDF
CAD STEP data	-	735.40 KB	STP
IGES data	-	2.75 MB	IGS
JT data	-	366.35 KB	JT

Filename	Description	Filesize	File type
brochure	-	10.06 MB	PDF

Filename	Description	Filesize	File type
Declaración REACH SVHC	-	196.85 KB	PDF
RoHS certificate	-	197.18 KB	PDF

Articlenr.	Article-type description	Quantity
25.646.0653.0	PCB pin header 8513 S / 6 G OB	pieces
25.647.0653.0	PCB pin header 8513 S / 6 W OB	pieces
25.647.0606.0	PCB pin header 8513 S / 6 W OB THR	pieces
25.646.0608.0	PCB pin header 8513 S / 6 G OB THR	pieces
25.647.0608.0	PCB pin header 8513 S / 6 W OB THR	pieces
25.657.0608.0	PCB pin header 8513 SEGN/ 6 W THR OB	pieces
25.657.0606.0	PCB pin header 8513 SEGN/ 6 W THR OB	pieces
25.656.0608.0	PCB pin header 8513 SEGN/6 G THR OB	pieces
25.656.0606.0	PCB pin header 8513 SEGN/6 G THR OB	pieces
