earth terminal WT 16 PE

Articlenr. 58.516.9055.0

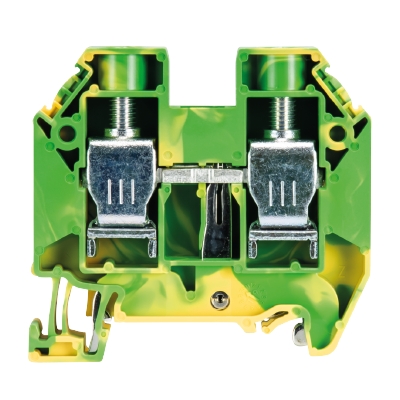

Ground terminal with Screw connection for mounting on TS 35, nominal cross section: 16 mm², width: 12 mm, color: Green-yellow

Price

Stock on request

Quantity

pieces

Discontinuation planned!

Article start page

Technical data

Downloads

Accessories

Fits with

Data sheet

commercial data

article number	58.516.9055.0
article description	earth terminal WT 16 PE
EAN	4049088164347
order unit	50 piece(s)
country of origin	DE
customs tariff number	85369010

packaging dimensions

length packed	322 mm
width packed	126 mm
height packed	65 mm
gross weight packed	2360 g
net weight single part	43.1 g
volume packed	2637 ccm
packaging	cardboard
packaging quantity	50 piece(s)

certificates / approvals

general

nominal cross section	16 mm²
color	green/yellow
number of levels	1
number of clamp positions per level	2
width/grid dimension	12 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
mounting method	DIN rail (top hat rail)
terminal blocks for electrical installations	yes

technical data

rated voltage	1000 V
rated impulse voltage	8 kV
pollution degree	3
closing plate required	yes
type of insulation material	thermoplastic
length	58 mm

connection data

connection type 1	screw connection
connection type 2	screw connection
minimum cross section solid	1.5 mm²
maximum cross section solid	16 mm²
minimum cross section fine stranded	4 mm²
maximum cross section fine stranded	25 mm²
minimum cross section stranded	16 mm²
maximum cross section stranded	25 mm²
minumum conductor cross section (flex., stranded) with cable end sleeve	1.5 mm²
maximum conductor cross section (flex., stranded) with cable end sleeve	16 mm²
wire strip length	15 mm
torque conductor mounting	2 Nm

technical data UL/CSA

cross section UL	14-4 AWG
voltage UL	600 V
cross section CSA	14-4 AWG
voltage CSA	600 V

technical data IECEx

cross section fine-stranded	4 - 25
connectable conductor cross section solid	1,5 - 25
connectable conductor cross section stranded	1,5 - 25

classification

ECLASS 11
ECLASS 8.1	27141141
ETIM 9.0	EC000901
ETIM 8.0	EC000901
ETIM 7.0	EC000901
ETIM 6.0	EC000901
ETIM 5.0	EC000901
ETIM 4.0	EC000901
ETIM 3.0	EC000901

product compliance

ROHS conformity status	compliant
REACH-SVHC conformity status	compliant

Filename	Description	Filesize	File type
EC Declaration of Conformity	-	182.67 KB	PDF
Ex information	-	15.24 MB	ZIP
UKCA Declaration of Conformity	-	38.48 KB	PDF
approval CSA	-	38.76 KB	PDF
approval GL	-	214.57 KB	PDF
approval SEV	-	274.10 KB	PDF
approval SEV-Ex	-	5.20 MB	PDF
approval UR	-	160.16 KB	PDF

Filename	Description	Filesize	File type
customer drawing	-	86.57 KB	PDF
customer drawing	-	84.42 KB	TIF
customer drawing DXF	-	3.70 MB	DXF

Filename	Description	Filesize	File type
3D product image	-	343.45 KB	PDF
CAD STEP data	-	889.16 KB	STP
IGES data	-	2.17 MB	IGS
JT data	-	2.59 KB	JT

Filename	Description	Filesize	File type
assembly instruction	-	389.03 KB	PDF

Filename	Description	Filesize	File type
catalogue	-	28.67 MB	PDF

Filename	Description	Filesize	File type
Declaración REACH SVHC	-	196.85 KB	PDF

Articlenr.	Article-type description	Quantity
Z7.284.4227.0	jumper bar IVBWKF 16- 2	pieces
07.313.2755.0	end plate AP WT 16 GR	pieces
07.313.2855.0	partition TW WT 4... GR	pieces
04.242.6053.0	marking tag strips 9705 A / 6 / 10	pieces
98.300.1000.0	mounting rail TS 35x7,5 PERF 15mm - l:2000mm	pieces
