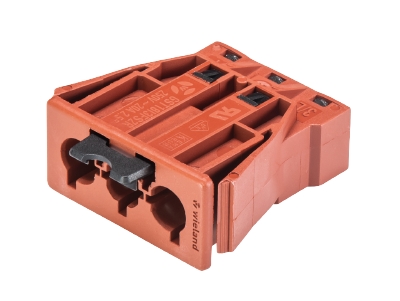

Apparatstik GST18I3F S2 R V BR05

Articlenr. 92.032.8458.0

GST18I3 3-pol Apparat stik fjeder 250V/20A han 0,5-2,5mm² brun

Price

Stock on request

Quantity

pieces

Article start page

Technical data

Downloads

Accessories

Fits with

Data sheet

Array

	92.032.8458.0
	Apparatstik GST18I3F S2 R V BR05
EAN	4015573682276
Ordre enhed	100 St
	DE
	85366990

Emballagens dimensioner

	205 mm
	180 mm
	125 mm
	1720 g
	15,699 g
	4612,5 ccm
	pap
	100 St

Eldas Number

157861798

Godkendelser

Generelt

Nominel strøm	20 A
Nominel spænding	250 V
Forureningsgrad	2
Mekanisk kodning	Code 4
Nominel impuls spænding	4 kV
låsbar
Farve på kodning/kontaktindsats	brun
Pol-mærkning	1, 2, 3

Tilslutningsdata

Kvadrat massiv	2,5 mm²
Tværsnit massiv 2 (min.)	0,5 mm²
Tværsnit fintrådet max.	1,5 mm²
Tværsnit flerkoret 2 (min.)	0,5 mm²
Tilslutninger per pol	2
Afisoleringslængde	9 mm

Model

Model	Han
Tilslutning	Fjeder tilslutning
Stik retning	Lige
Tæthedsklasse (IP)	IP20
Bemærkning til type af forbindelse	Fin og flertrådede ledere kræver tyller
Tykkelse af huse (elektrisk apparat)	0,5 mm
Tykkelse af huse (elektrisk apparat)	1,5 mm
Indbygget komponent	Snap-In

Materiale

Materiale kasse	Polyamid
Halogenfri	ja
Kontakt material	CuZn
brand belastning	0,063 kWh/St
Kontinuerlig temperatur, isolationsdele	100 °C
Overfladebehandling	tin

Dimensioner

Længde	37,5 mm
Bredde	32,8 mm
Højde	17,5 mm

Klassifikation

ECLASS 11
ECLASS 8.1	27440602
ETIM 9.0	EC002566
ETIM 8.0	EC002566
ETIM 7.0	EC002566
ETIM 6.0	EC002566
ETIM 5.0	EC002566
ETIM 4.0	EC002566

Product compliance

ROHS conformity status
ROHS Exceptions	III-6(c)
REACH-SVHC conformity status
REACH substance	Lead
REACH CAS-Numbers	7439-92-1

Filename	Description	Filesize	File type
EC Declaration of Conformity	-	37.93 KB	PDF
UKCA Declaration of Conformity	-	38.43 KB	PDF
approval CQC	-	3.50 MB	PDF
approval DEKRA	-	417.90 KB	PDF
approval DEKRA	-	2.39 MB	PDF
approval UR	-	192.21 KB	PDF
approval VDE	-	1.02 MB	PDF
approval VDE	-	1.34 MB	PDF

Filename	Description	Filesize	File type
dimensional drawing	-	20.17 KB	PDF

Filename	Description	Filesize	File type
3D product image	-	310.83 KB	PDF
CAD STEP data	-	989.75 KB	STP
IGES data	-	1.98 MB	IGS
JT data	-	416.73 KB	JT

Filename	Description	Filesize	File type
REACH info	-	68.37 KB	PDF
tender text (DOCX)	-	12.16 KB	DOCX
tender text (TXT)	-	735.00 B	TXT

Filename	Description	Filesize	File type
Declaración REACH SVHC	-	197.74 KB	PDF
RoHS certificate	-	197.76 KB	PDF

Articlenr.	Article-type description	Quantity
05.595.1453.0	(G)ST18V SW	pieces
05.595.1453.2	(G)ST18V WS	pieces
05.561.3653.0	Blindprop GST18I3VS B WS	pieces
05.561.3653.1	Blindprop GST18I3VS B SW	pieces
05.564.5353.0	Blindprop GST18I3/4/5 SW	pieces
05.564.5353.2	Blindprop GST18I3/4/5 WS	pieces
05.594.4250.0	Blindprop ST18/3B + GST18I3 ST WS	pieces
05.594.4253.0	Blindprop ST18/3B + GST18I3 ST WS	pieces
07.425.8753.0	Afdækning GST18I3 WS	pieces
07.425.8753.1	Afdækning GST18I3 SW	pieces
