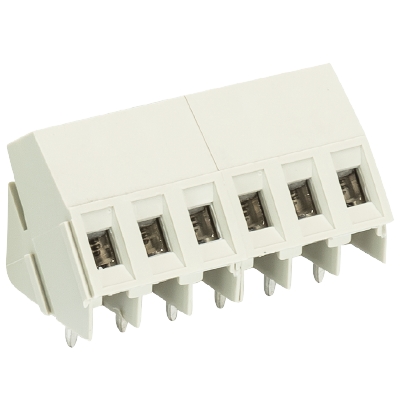

printed circuit board terminal 8135 / 10

Codice del prodotto 25.520.1053.0

PCB terminal with screw connection with rising cage clamp system, 10 poles, printed version, with solder pin (3.5mm), max. cross section: 2.5 mm², pitch: 5 mm, type of packing: carton, color: grey

Prezzo

Stock Su richiesta

Quantità

Piece(s)

Start page per gli articoli

Dati tecnici

Download

Accessori

Controparte

Stampa PDF

commercial data

article number	25.520.1053.0
article description	printed circuit board terminal 8135 / 10
EAN	4015573202047
order unit	50 piece(s)
country of origin	DE
customs tariff number	85369010

packaging dimensions

length packed	135 mm
width packed	81 mm
height packed	81 mm
gross weight packed	787.2 g
net weight single part	14.984 g
volume packed	886 ccm
packaging	cardboard
packaging quantity	50 piece(s)

certificates / approvals

general

modular spacing	5 mm
connection type	screw connection
soldering process	wave soldering
packaging	carton
number of poles	10
conductor to circuit board	35°
number of levels	1
integrated test socket	yes
insulation plate	no
retaining pins	no
marking	yes

technical data

nominal cross section	2.5 mm²
rated current	16 A
overvoltage category I	1000 V
overvoltage category II	690 V
overvoltage category III	250 V
rated impulse voltage	4 kV
wire strip length	6 mm

connection data

minimum cross section solid	0.14 mm²
maximum cross section solid	4 mm²
minimum cross section fine stranded	0.14 mm²
maximum cross section fine stranded	2.5 mm²
wire strip length	6 mm

technical data UL/CSA

cross section UL	22-12 AWG
voltage UL	300 V
current field wiring	20 A
current factory wiring	30 A
cross section CSA	22-12 AWG
voltage CSA	300 V
current CSA	25 A

other

type of insulation material	thermoplastic
color	grey
height	15.3 mm
length	50.85 mm
depth	14.02 mm
material attachment screw	steel
material contact base	E-Cu
material contact surface	Sn
tightening torque note	if soldered additional mechanical fixing necessary
tightening moment	0.5 Nm

classification

ECLASS 11
ECLASS 8.1	27440401
ETIM 9.0	EC002643
ETIM 8.0	EC002643
ETIM 7.0	EC002643
ETIM 6.0	EC002643
ETIM 5.0	EC002643
ETIM 4.0	EC002643

product compliance

ROHS conformity status	compliant/exempted
ROHS exceptions	III-6(c)
REACH-SVHC conformity status	Duty-To-Declare
REACH-SVHC substances	Lead
REACH-SVHC CAS numbers	7439-92-1

Nome file	Description	Dimensioni	Tipo di file
Approval CSA	-	340.20 KB	PDF
Approval UR	-	294.30 KB	PDF
Approval VDE	-	4.08 MB	PDF
Dichiarazione di conformità CE	-	48.04 KB	PDF
Dichiarazione di conformità UKCA	-	43.37 KB	PDF

Nome file	Description	Dimensioni	Tipo di file
Disegno dimensionale	-	26.52 KB	PDF
Schema di foratura	-	18.38 KB	PDF

Nome file	Description	Dimensioni	Tipo di file
Depliant	-	10.06 MB	PDF

Nome file	Description	Dimensioni	Tipo di file
Certificato RoHS	-	197.76 KB	PDF
Dichiarazione REACH SVHC	-	197.73 KB	PDF
