Feed-through terminal 9700 A / 6 S35

Codice del prodotto 54.004.7553.0

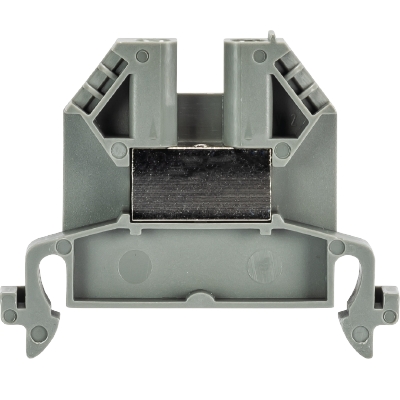

Feed-through DIN rail terminal block with screw connection for mounting on TS 35, nominal cross section 4 mm², width 6 mm, color grey

No longer available!

Start page per gli articoli

Dati tecnici

Download

Accessori

Controparte

Stampa PDF

Commercial data

Article number	54.004.7553.0
Article description	Feed-through terminal 9700 A / 6 S35
EAN	4015573209121
Order Unit	100 piece(s)
Country of origin	DE
Customs tariff number	85369010

Packaging dimensions

Length packed	242 mm
Width packed	126 mm
Height packed	43 mm
Gross weight packed	659 g
Net weight single part	6.18 g
Volume packed	1311 ccm

Certificates / Approvals

General

Nominal cross section	4 mm²
Color	Grey
Number of levels	1
Number of clamp positions per level	2
Width/grid dimension	6 mm
Insulating housing	PA66
Inflammability class of insulation material acc. with UL94	V2
Explosion-tested version "Ex e"	No
Mounting method	DIN rail (top hat rail) 35/7.5 mm
Terminal blocks for electrical installations	yes

Technical data

Rated current	32 A
Rated voltage	800 V
Rated impulse voltage	8 kV
Pollution degree	3
Closing plate required	yes
Type of insulation material	Thermoplastic
Length	46.6 mm

Connection Data

Connection type 1	screw connection
Connection type 2	screw connection
Minimum cross section solid	0.5 mm²
Maximum cross section solid	6 mm²
Minimum cross section fine stranded	0.5 mm²
Maximum cross section fine stranded	4 mm²
Wire strip length	9 mm
Torque conductor mounting	0.5 Nm

Technical Data UL/CSA

Cross section UL	18-10 AWG
Voltage UL	600 V
Current factory wiring	30 A
Current field wiring	30 A
Cross section CSA	22-10 AWG
Voltage CSA	600 V
Current CSA	35 A

Classification

ECLASS 11
ECLASS 8.1	27141120
ETIM 8.0	EC000897
ETIM 7.0	EC000897
ETIM 6.0	EC000897
ETIM 5.0	EC000897
ETIM 4.0	EC000897
ETIM 3.0	EC000897

Product compliance

ROHS conformity status	Compliant/Exempted
ROHS exceptions	III-6(c)
REACH-SVHC conformity status	Duty-To-Declare
REACH-SVHC substances	Lead
REACH-SVHC CAS numbers	7439-92-1
